Cable Breakout

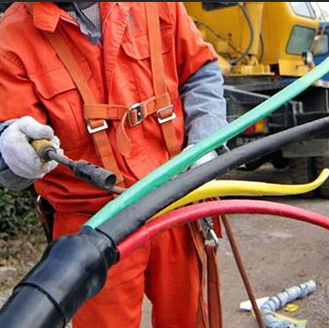

Low Voltage 2 to 5 Cores Cable Breakout made with the hot melt material and the cross-linked polyolefin layer, and suitable for applications up to 1 KV. The properties of electrical insulation, UV resistant and water proof. It is widely used inelectric power industury to provide insulation and seal over the crutch of multi-core cables.
Feature
Standard color: Black
Suitable for low-voltage power cables
Seal, good adhesion properties, good UV and weather resistance
Operating temperature: -55°C ~ 110°C
Shrink temperature: 110°C ~ 130°C
Specification
Product No. | Base Diameter | Fingr Diameter | Full Length (±10%)/mm | Finger Length (±10%)/mm | |||
As Supplied (Min)/mm | After Recovered (Max)/mm | As Supplied (Min)/mm | After Recovered (Max)/mm | ||||

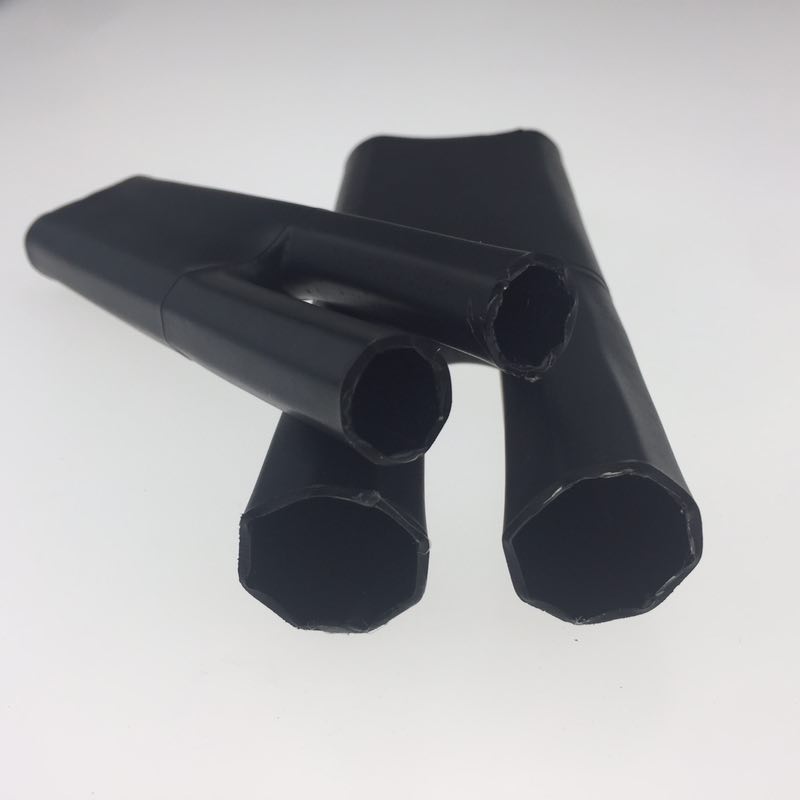

2 Cores | WRSZT2-24/12 (0#) | 24 | 12 | 12 | 5 | 130 | 55 |
WRSZT2-38/16 (1#) | 38 | 16 | 20 | 7 | 140 | 60 | |

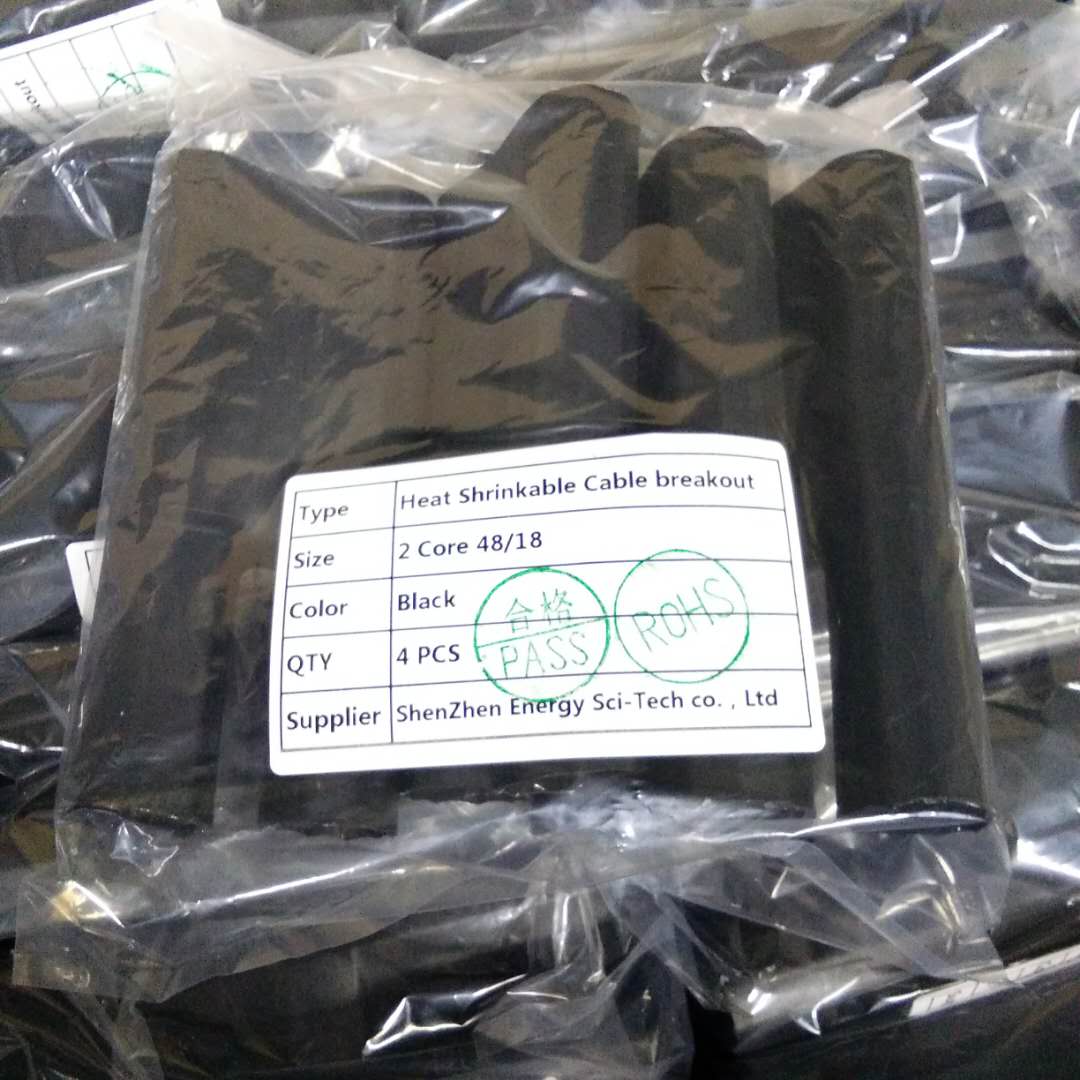

WRSZT2-48/18 (2#) | 48 | 18 | 25 | 9 | 145 | 60 | |
WRSZT2-60/24 (3#) | 60 | 24 | 35 | 11 | 135 | 55 | |
WRSZT2-72/25 (4#) | 72 | 25 | 40 | 12 | 140 | 60 | |
3 Cores | WRSZT3-24/16 (-2#) | 24 | 16 | 11 | 5 | 140 | 50 |
WRSZT3-48/22 (-1#) | 48 | 22 | 18 | 7 | 170 | 55 | |
WRSZT3-60/28 (0#) | 60 | 28 | 25 | 8 | 175 | 55 | |
WRSZT3-70/36 (1#) | 70 | 36 | 30 | 13 | 210 | 55 | |
WRSZT3-85/45 (2#) | 85 | 45 | 40 | 16 | 225 | 60 | |
WRSZT3-110/53 (3#) | 110 | 53 | 42 | 19 | 250 | 85 | |
WRSZT3-125/63 (4#) | 125 | 63 | 58 | 25 | 245 | 95 | |
WRSZT3-140/63 (5#) | 140 | 63 | 65 | 25 | 245 | 90 | |
4 Cores | WRSZT4-38/18 (0#) | 38 | 18 | 10 | 5 | 130 | 45 |
WRSZT4-50/24 (1#) | 50 | 24 | 16 | 7 | 135 | 45 | |
WRSZT4-70/32 (2#) | 70 | 32 | 23 | 9 | 180 | 65 | |
WRSZT4-80/44 (3#) | 80 | 44 | 30 | 13 | 210 | 75 | |
WRSZT4-90/44 (4#) | 90 | 44 | 35 | 13 | 210 | 75 | |
WRSZT4-110/53 (5#) | 110 | 53 | 40 | 13 | 210 | 75 | |
WRSZT4-110/51 (5# Lengthen) | 110 | 51 | 40 | 17 | 225 | 55 | |

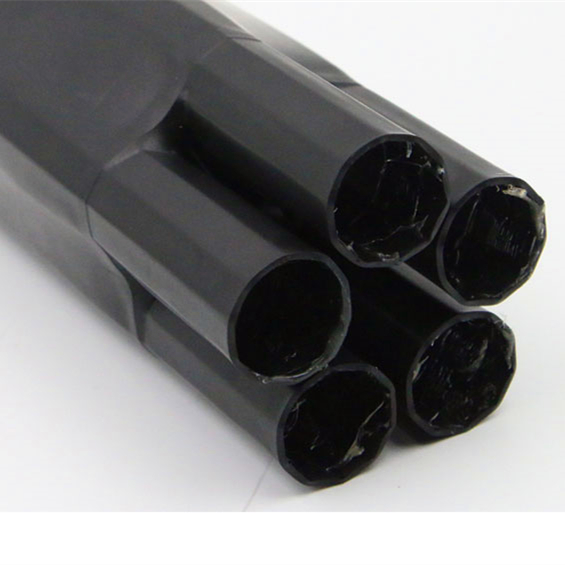

5 Cores | WRSZT5-42/21 (0#) | 42 | 21 | 12 | 5 | 155 | 55 |
WRSZT5-57/29 (1#) | 57 | 29 | 16 | 7 | 170 | 60 | |
WRSZT5-70/38 (2#) | 70 | 38 | 23 | 9 | 170 | 55 | |
WRSZT5-90/50 (3#) | 90 | 50 | 30 | 13 | 180 | 60 | |
WRSZT5-120/47 (4#) | 120 | 47 | 39 | 14 | 205 | 60 |
