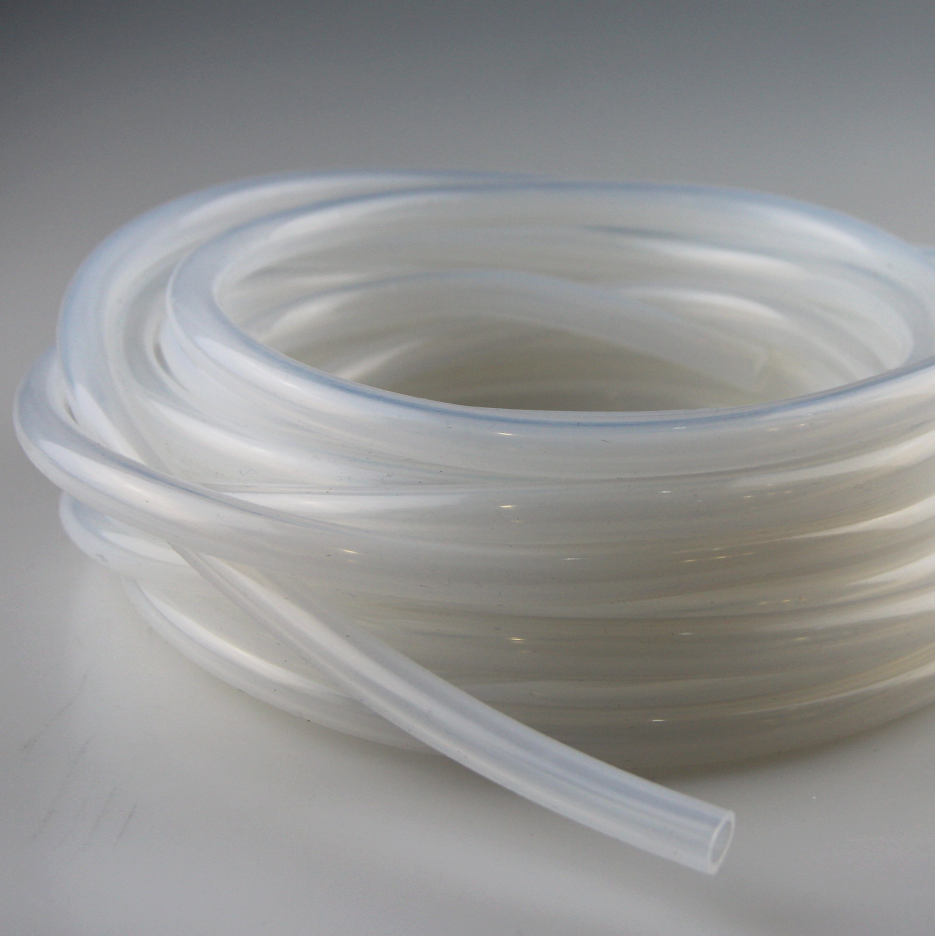

FDA Silicone Rubber Tube

Our FDA Silicone Rubber Tube can be applicated on Medical equipment Coffee machine Food and Beverage Air and Gas lines Chemical lines Laboratory and research Protective jacketing Water and Fluid lines...

Read More
Material: 100% Silicone rubber
Standard color: Transparent (clear), white, other colors can be customized.
Certificate: RoHS and FDA approval. Food and Medical grade.
Characteristic: It has been specially processed, no poison and no small, good heatproof, aging resistance. It can bear 200℃ high temperature, high voltage and cook for many times. Slick surface, soft and flexibility.
Operation temperature: -60℃ to 200℃
Application: Medical equipment, Coffee machine, Food and Beverage, Air and Gas lines, Chemical lines, Laboratory and research, Protective jacketing, Water and Fluid lines...

Specification
Size(mm) Internal Diameter Average Wall Thickness(mm) Standard Package (M/Coil)
2500V 4000V(mm) 6000V 7000V
1.0 1.0±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 200
1.5 1.5±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 200
2.0 2.0±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
2.5 2.5±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
3.0 3.0±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
3.5 3.5±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
4.0 4.0±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
4.5 4.5±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
5.0 5.0±0.20 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 50
6.0 6.0±0.20 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 50
8.0 8.0±0.25 ／ 1.0±0.15 1.5±0.20 2.0±0.25 50
10 10±0.25 ／ 1.0±0.15 1.5±0.20 2.0±0.25 50
11 11±0.30 ／ 1.0±0.15 1.5±0.20 2.0±0.25 50
12 12±0.30 ／ 1.0±0.15 1.5±0.20 2.0±0.25 50
13 13±0.30 ／ 1.0±0.15 1.5±0.20 2.0±0.25 50
14 14±0.30 ／ 1.0±0.15 1.5±0.20 2.0±0.25 50
15 15±0.30 ／ 1.0±0.15 1.5±0.20 2.0±0.25 25
20 20±0.30 ／ 1.0±0.15 1.5±0.20 2.0±0.25 10
Note:
* All different customized sizes are approval.
* Our hot sales items: ID 4mm x OD 6mm, ID 6mm x OD 11mm, ID 8mm x OD 12mm.
