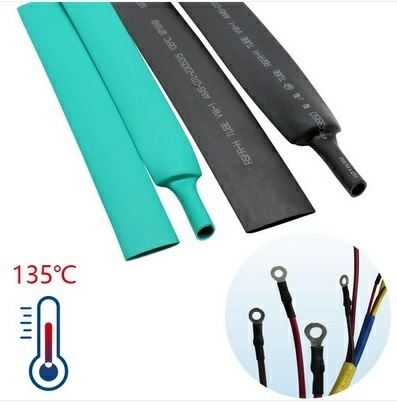

High Temperature Heat Shrinkable Tube

Heat Shrink tube is widely used for insulation or jacketing of wire harnessstrain relif of wire terminations and connectionsbundling of wire harness

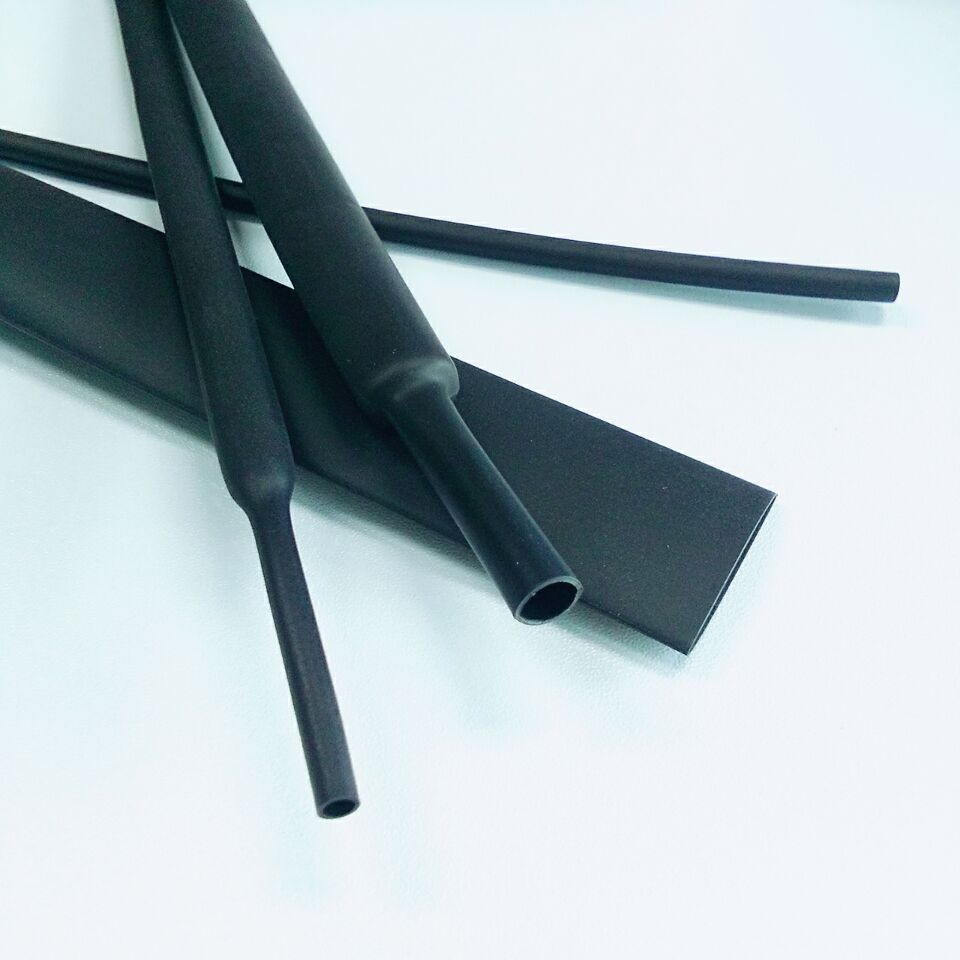

Heat shrink tube


Features:
1.  Material: Polyolefin or PE
2.  Shrink ratio: 2:1,3:1
3.  Halogen free, low smoke, non-toxic, Flexible, flame retardant
4.  Meet standard: UL224, CAN/CSA C22.2 NO198.1-99
5.  Operating temperature: -55℃ to 125℃
6.  Minimum shrink temperature: 84℃
7.  Minimum fully recovery temperature:120℃
8.  Standard color: Black, red, green, yellow, blue, white and transparent...
9.  Soft, high flame-retardant, eco-friendly, quick shrink, bright and lasting color and stable   performance

Application
It is widely used for insulation or jacketing of wire harness,strain relif of wire terminations and connections,bundling of wire harness,protection of soldered points,insulation and capsule of electronic components,anti-corrosive protection,identification and color coding,etc.


Performance Test Method Index
Tensile strength (MPa) ASTM D 2671 ≧10.4
Elongation (%) ASTM D 2671 ≧200
Tensile strength after aging (MPa) 158℃ X 168h ≧7.3
Elongation after aging (%) 158℃ X 168h ≧100
Axial change ratio (%) ASTM D 2671 -5~+5
Flame retardant ASTM D 2671 VW-1
Voltage resistance (600V) UL224 2500 V.1min No breakdown
Dieletric strength (kv/mm) ASTM D 149 ≧15
Volume resistivity (Ω.cm) IEC 60093 ≧1014

Size(mm) As supplied (mm) After recovery (mm) Packing M/Roll
Inner diameter Inner diameter Wall thickness
ф0.5 0.8±0.2 ≦0.35 0.33±0.10 400
ф0.6 0.9±0.2 ≦0.40 0.33±0.10 400
ф0.8 1.1±0.2 ≦0.50 0.33±0.10 400
ф1.0 1.5±0.2 ≦0.65 0.36±0.10 400
ф1.5 2.0±0.2 ≦0.85 0.36±0.10 400
ф2.0 2.5±0.2 ≦1.00 0.45±0.10 400
ф2.5 3.0±0.2 ≦1.30 0.45±0.10 400
ф3.0 3.5±0.2 ≦1.50 0.45±0.10 400
ф3.5 4.0±0.2 ≦1.80 0.45±0.10 400
ф4.0 4.7±0.2 ≦2.00 0.45±0.10 400
ф4.5 5.0±0.2 ≦2.30 0.56±0.10 200
ф5.0 5.5±0.2 ≦2.50 0.56±0.10 200
ф5.5 6.0±0.2 ≦2.75 0.56±0.10 200
ф6.0 6.5±0.2 ≦3.00 0.56±0.10 200
ф7.0 7.5±0.3 ≦3.50 0.56±0.10 100
ф8.0 8.5±0.3 ≦4.00 0.56±0.10 100
ф9.0 9.5±0.3 ≦4.50 0.56±0.10 100
ф10 10.5±0.3 ≦5.00 0.56±0.10 100
ф11 11.5±0.3 ≦5.50 0.56±0.10 100
ф12 12.5±0.3 ≦6.00 0.56±0.10 100
ф13 13.5±0.3 ≦6.50 0.70±0.10 100
ф14 14.5±0.3 ≦7.00 0.70±0.10 100
ф15 15.5±0.4 ≦7.50 0.70±0.10 100
ф16 16.5±0.4 ≦8.00 0.70±0.10 100
ф17 17.5±0.4 ≦8.50 0.70±0.10 100
ф18 19±0.5 ≦9.00 0.70±0.10 100
ф20 22±0.5 ≦10.0 0.80±0.15 100
ф22 24±0.5 ≦11.0 0.80±0.15 100
ф25 26±0.5 ≦12.5 0.90±0.15 50
ф28 29±0.5 ≦14.0 0.90±0.15 50
ф30 31.5±1.0 ≦15.0 1.00±0.15 50
ф35 36.5±1.0 ≦17.5 1.00±0.15 50
ф40 41.5±1.0 ≦20.0 1.00±0.15 50
ф45 46.5±1.5 ≦22.5 1.00±0.20 25
ф50 ≧50 ≦25.0 1.10±0.20 25
ф60 ≧60 ≦30.0 1.20±0.20 25
ф70 ≧70 ≦35.0 1.30±0.20 25
ф80 ≧80 ≦40.0 1.30±0.20 25
ф90 ≧90 ≦45.5 1.30±0.20 25
ф100 ≧100 ≦50.0 1.30±0.20 25
ф120 ≧120 ≦60.0 1.30±0.20 25
ф150 ≧150 ≦75.0 1.30±0.20 25
ф180 ≧180 ≦90.0 1.30±0.30 25
ф210 ≧210 ≦105.0 1.30±0.30 25
ф230 ≧230 ≦115.0 1.30±0.30 25
ф250 ≧250 ≦125.0 1.30±0.30 25
ф300 ≧300 ≦150 1.30±0.30 25
