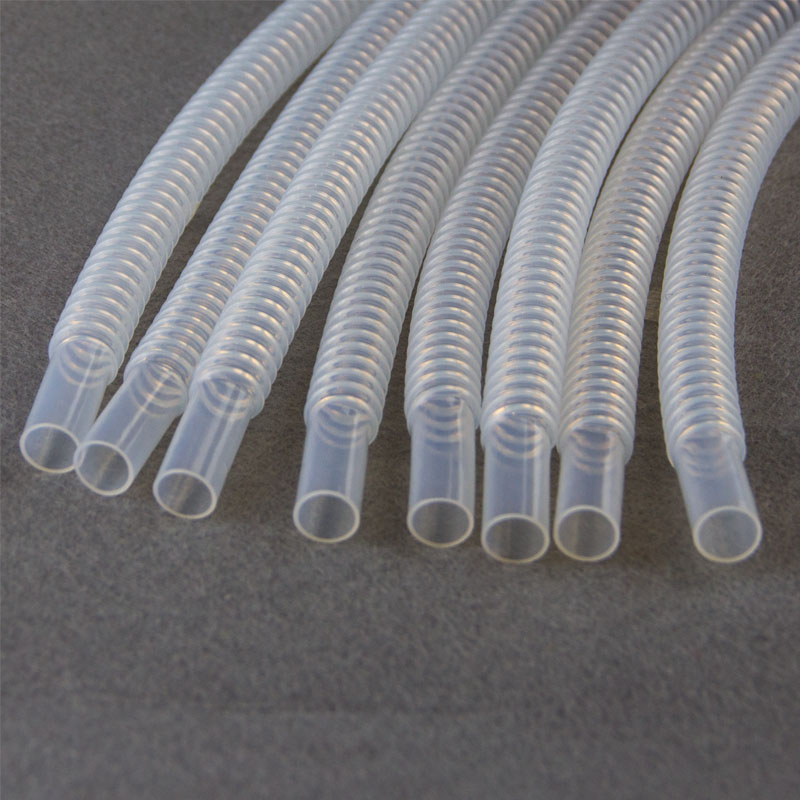

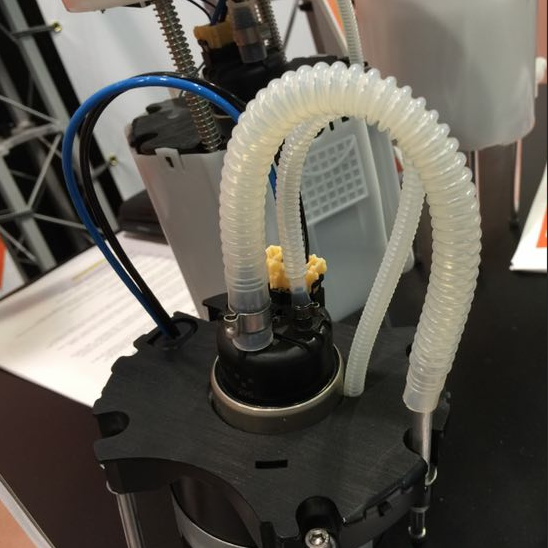

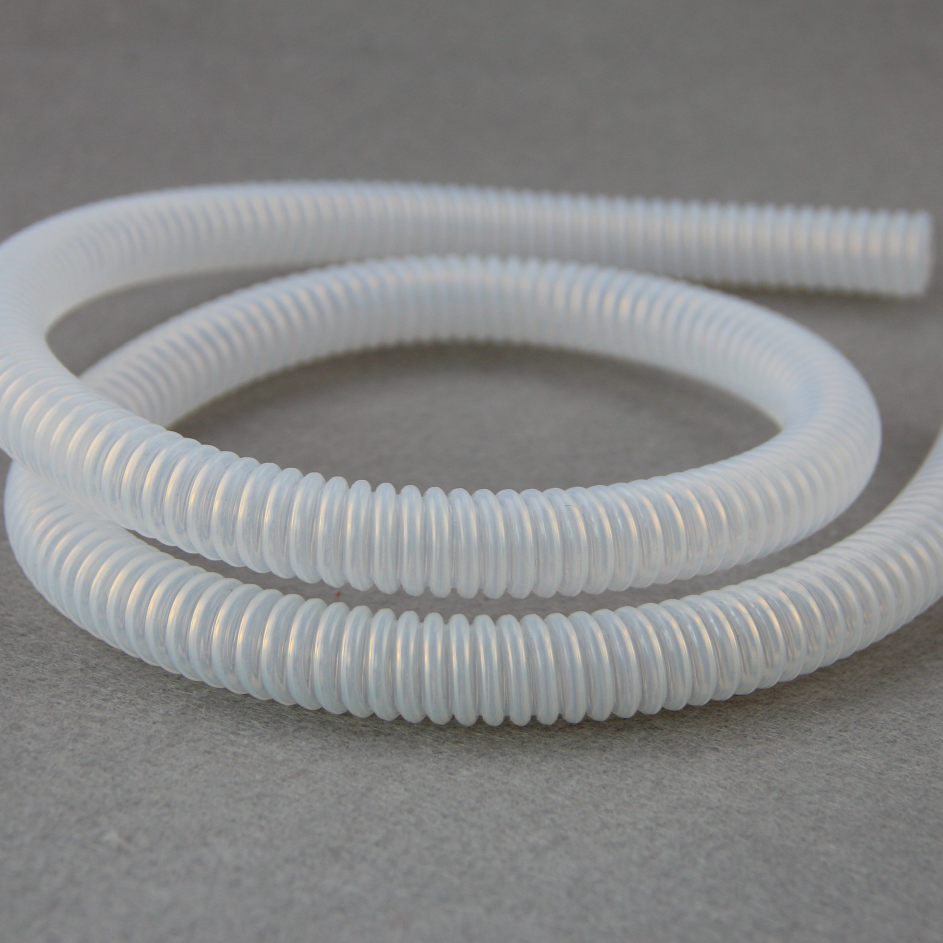

PTFE teflon corrugated pipe specially designed for protecting applications in extreme electrical ,chemical and thermal environment, often use for cable protection pipes and corrosive liquids transmission medium. Such as: Automotive equipment， Machine tool, Mechanical building, Shipping facilities, Transport installation, Air-condition equipment, Rail transportation, Railway etc.
Features:
1. Material: 100% PTFE teflon.
2. Standard color: White, clear, also other colors: black, gray... are available.
3. Non- Adhesive: Handles substances such as adhesives,asphalt,dyes,greases,glue,lacquers,and paints with ease.
4. Chemical Inertness: Remains stable in almost all chemical environments so not to contaminate material, fluid or gas conducted.
5. Corrosion Resistance: Resists to melting alkali metal, strong acid, strong oxidizer, reductant, and any kind of organic solvents,etc.
6. High operating temperature: Operating temperature range:-80°C to 260°C
Note:
* Can be customized according to customer's size.
* The pipe can be with Cuff sizes also.
Features:
1. Material: 100% PTFE teflon.
2. Standard color: White, clear, also other colors: black, gray... are available.
3. Non- Adhesive: Handles substances such as adhesives,asphalt,dyes,greases,glue,lacquers,and paints with ease.
4. Chemical Inertness: Remains stable in almost all chemical environments so not to contaminate material, fluid or gas conducted.
5. Corrosion Resistance: Resists to melting alkali metal, strong acid, strong oxidizer, reductant, and any kind of organic solvents,etc.
6. High operating temperature: Operating temperature range:-80°C to 260°C
Specification
| PTFE corrugated pipe (inch) | inner diameter (mm) | outer diameter (mm) | working pressure (kg) | Burst pressure (kg) |
| 1/8 | 3.5 | 6.5 | 10 | 30 |
| 3/16 | 5 | 8.5 | 10 | 30 |
| 1/4 | 6.5 | 10 | 10 | 30 |
| 5/16 | 8 | 12 | 10 | 30 |
| 3/8 | 10 | 14 | 10 | 30 |
| 1/2 | 13 | 18 | 10 | 30 |
| 5/8 | 16 | 21 | 10 | 30 |
| 3/4 | 19 | 28 | 10 | 30 |
| 7/8 | 22 | 29 | 10 | 30 |
| 1'' | 25 | 34 | 5 | 20 |
| 1 1/4 | 32 | 42 | 5 | 20 |
| 1 1/2 | 38 | 47 | 5 | 20 |
| 2'' | 50 | 61 | 5 | 20 |
* Can be customized according to customer's size.
* The pipe can be with Cuff sizes also.
