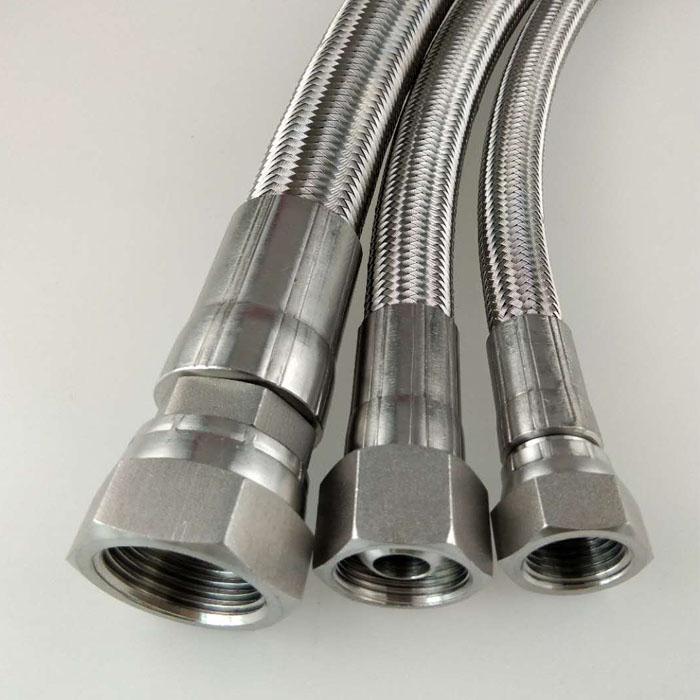

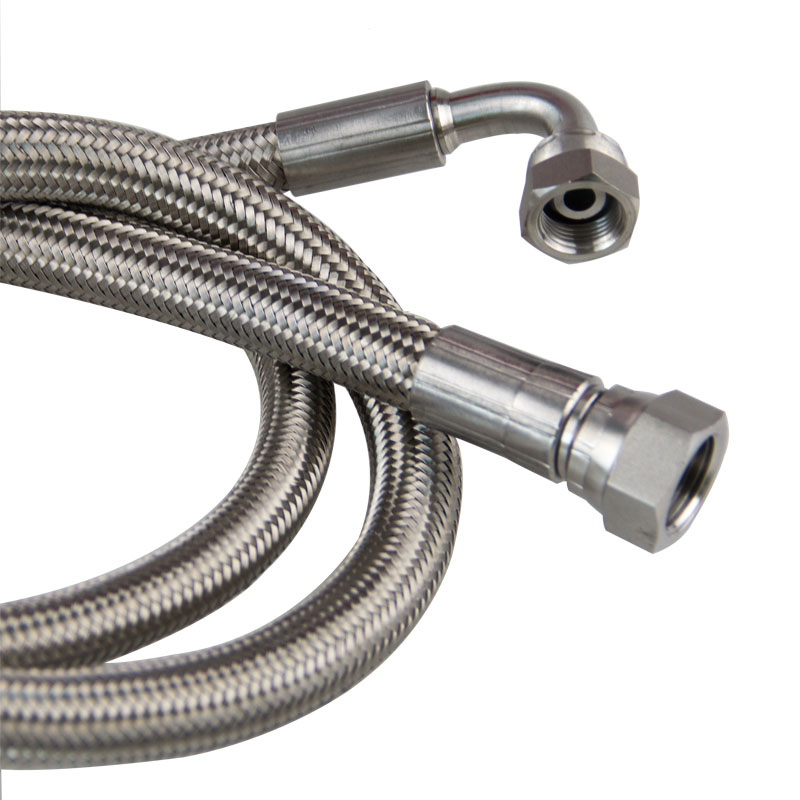

Stainless Steel Braided Corrugated PTFE Teflon Hose

Inside PTFE corrugated hose, outside coated with stainless steel braid, widely use for Medical Devices, Aerospace, Automobile parts, Analytical Science, Food processing, Cryogenic refrigeration system and so on.

Feature
Recommend For: Air compressor discharge, hot oil and fluids, hot and greasy environments.

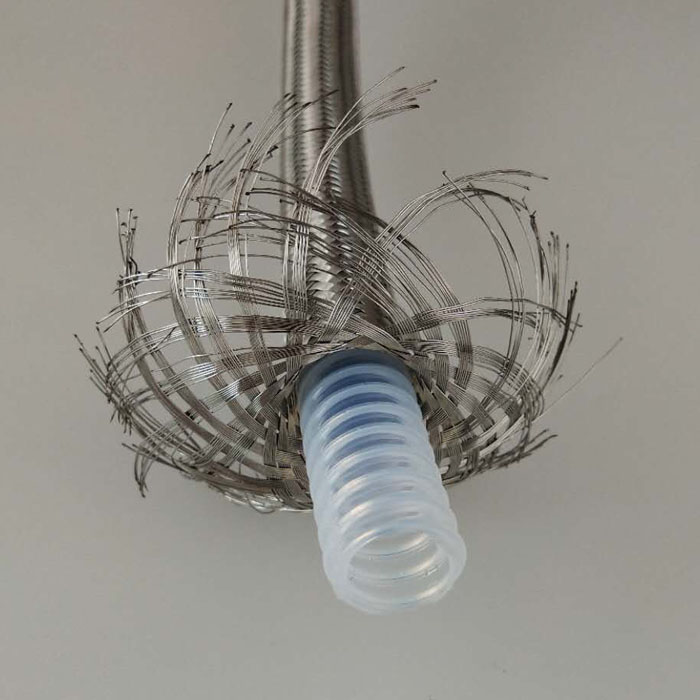

Tube: Inside PTFE corrugated hose, outside coated with stainless steel braid
Cover for reinforcement: stainless steel braid or seamless convoluted PTFE S304 or S316 steel braid
Temperature Range: -65 ℃ to + 260℃

Corrosion Resistant : PTFE is fully resistant to the broadest range of industrial chemicals and has a zero corrosion rate with lower life cycle costs.
Cleanable: Non-Stick, low porosity tube is self cleaning and does not trap bacteria and can be cleaned with steam, detergents, caustics or solvents.
High lubrication: the lowest coefficient of friction of solid material.
Sanitary: FDA approved materials meet or exceed Pharmacopoeia Class VI and 3A standards.
Compatible: Will not contaminate or impart taste, color, or odor to any media.
Flexible: Ultra flexible engineered design that resists cracking and stress corroding.
Durable: Engineered for extended use in hostile environments involving severe chemical, thermal, and mechanical stresses. Does not suffer from aging or embrittlement like rubber, even with extreme thermal cycling.

Application
Heating exchangers, Chemical/ corrosive applications, Medical Devices, Aerospace, Automobile parts, Analytical Science, Printing/ making equipment, Food/ beverage processing, Cryogenic refrigeration system and more.



Specification

PTFE corrugated hose (inch)

Inner diameter (mm)

Outer diameter (mm)

Total Outer Diameter after Braiding (mm)

working pressure (Bar)

Burst pressure (Bar)

1/8

3.5

6.5

7.2

5

15

3/16

5

8.5

9.2

5

15

 1/4

6.5

10

10.8

5

15

 5/16

8

12

12.8

4.5

14

 3/8

10

14.5

15.2

4.5

14

 1/2

13

17.8

18.5

4

12

 5/8

16

21

21.8

3

12

 3/4

19

25.5

26.3

3

12

 7/8

22

29

29.8

3

12

1''

25

32

32.8

3

10

1 1/4

32

42

42.8

2.5

9

1 1/2

38

47

47.8

2.5

9

2''

50

61

61.8

2

8

Note: * Can be customized according to customer's size.
         * The pipe can be with Cuff sizes also.
