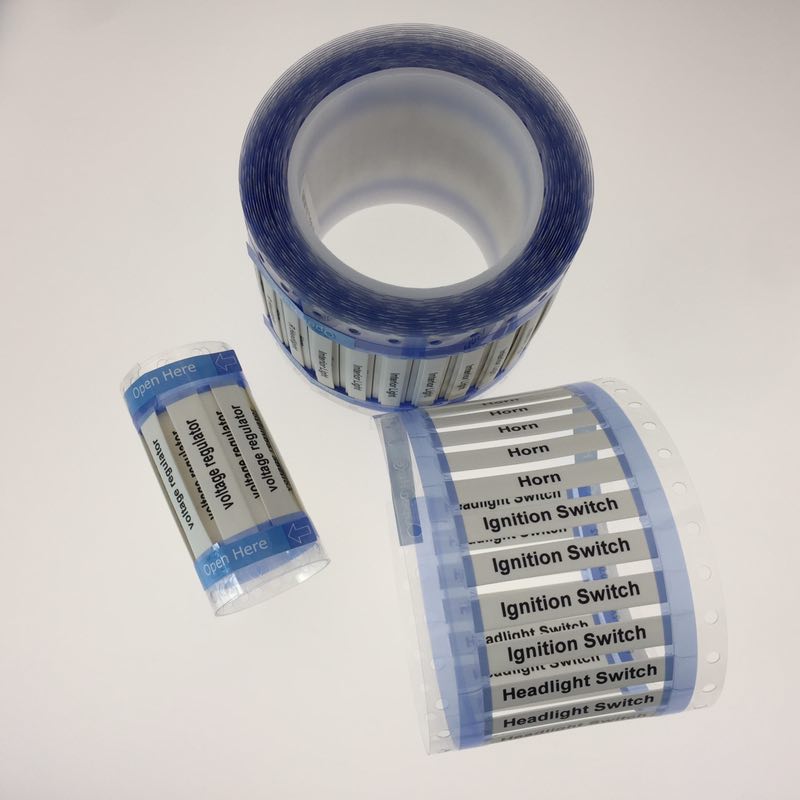

Special designed to meet the requirements of high performance identification of wire and cable and also meet the requirement to use in environment for the high temperature and high temperature organic solvent. It is made of superior flame retardant polyolefin with excellent electrical, physical, chemical and printing properties. Permanent printing property can be widely used for high-performance identification of wire and cables in industrial, military, aerospace, etc.
Features
Material: Polyolefin PE

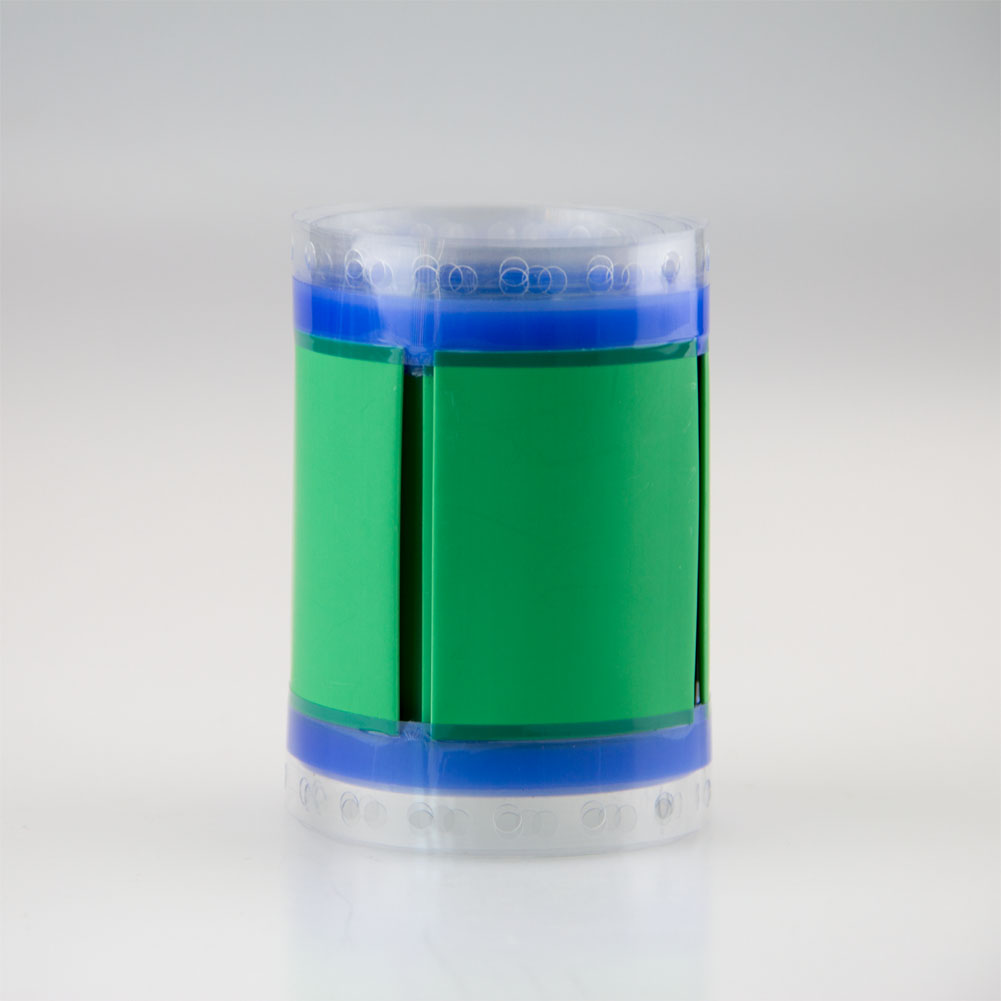

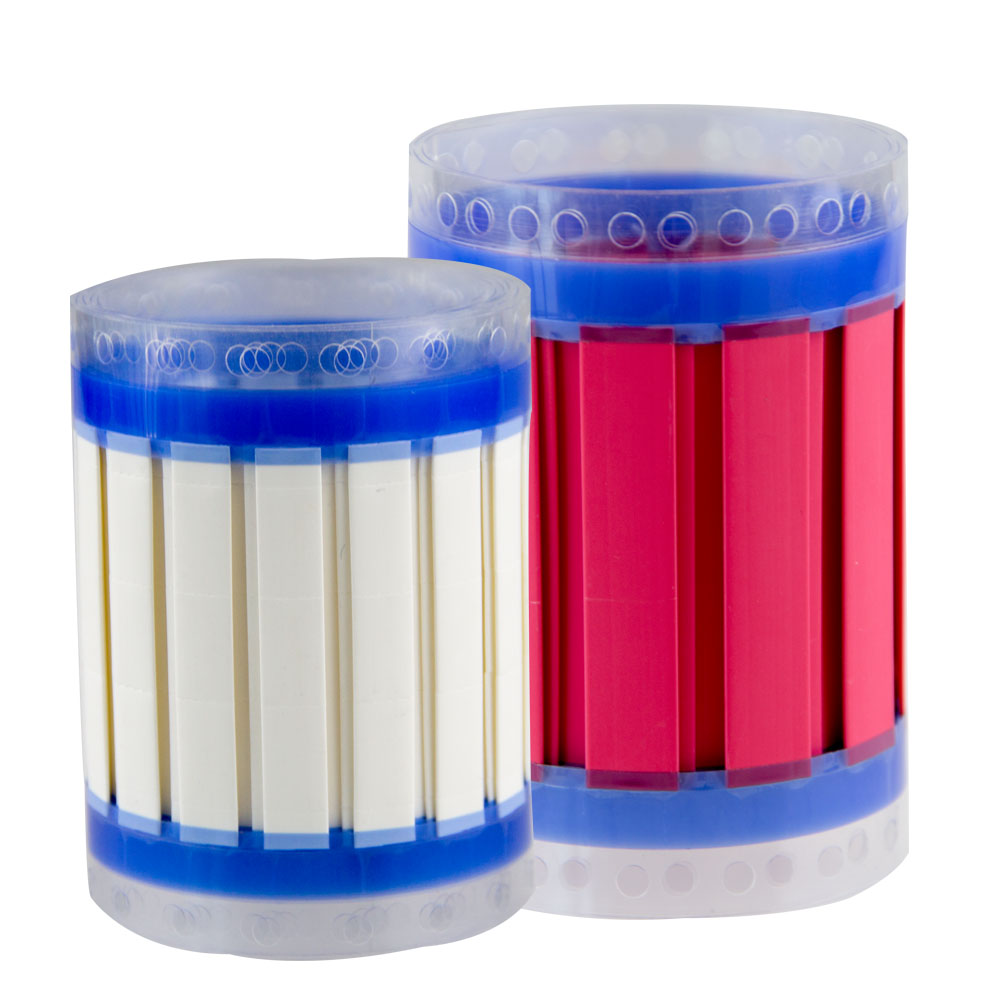

Color: Yellow, white, blue, green, red... can be customized.
Shrink ratio 3:1, 2:1
Flexible, Halogen-free, flame-retardant. Easy to be printed.
Excellent printing property, permanent identification,SAE AS81531 applicable. Excellent electrical, physical, chemical and printing properties.
RoHS and REACH compliant.
Operating temperature range: Operating temperature: -55℃ ~ 135℃ Minimum shrink temperature: 85℃
Minimum fully recovery temperature: 115℃
Approvals
UL224 125℃ 600V
SAE AS 81531,MIL-STD-202/ 215J
| Performance | |||
| Property | Unit | Testing Requirement | Test Results |
| Tensile strength | MPa | 10.3 | 14.3 |
| Ultimate elongation | % | 200 | 330 |
| Low temperature flexibility 4 hours at -55+-1℃ | - | No cracking | Pass(no cracking) |
| Dielectric strength | Kv/mm | 15.7kv/mm | 20kv/mm |
| Volume Resistivity | Ohm-cm | 1014minimum | 2.0x1014 |
| Corrosive effect | - | No corrosive | pass |
| Heat aging | - | 168 hours at 158+-2℃ | Pass(no cracking, print is legible) |
| Print performance | Rubs | SAE-AS81531 | Pass(legible after 100 rubs) |
| Strokes | MIL-STD-202F | Pass(legible after 100 Strokes) | |
| Shrink ratio-2X | |||||
| Part Number | As Supplied (mm) | After Recovery(mm) | |||
| ID(D) | Flatten Width(W) | Double Wall Thickness | ID(d) | Single Wall Thickness | |
| RSFR-M-2X-1.6- | 2.00±0.20 | 3.7±0.3 | 0.48±0.10 | ≦0.79 | 0.45±0.06 |
| RSFR-M-2X-2.4- | 2.79±0.20 | 5.0±0.3 | 0.48±0.10 | ≦1.18 | 0.49±0.06 |
| RSFR-M-2X-3.2- | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≦1.59 | 0.51±0.06 |
| RSFR-M-2X-4.8- | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≦2.36 | 0.54±0.06 |
| RSFR-M-2X-6.4- | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≦3.18 | 0.56±0.06 |
| RSFR-M-2X-9.5- | 10.2±0.32 | 16.7±0.5 | 0.51±0.11 | ≦4.75 | 0.59±0.06 |
| RSFR-M-2X-12.7- | 13.5±0.36 | 21.8±0.6 | 0.52±0.11 | ≦6.35 | 0.60±0.07 |
| RSFR-M-2X-19- | 20.1±0.40 | 32.2±0.6 | 0.53±0.11 | ≦9.53 | 0.62±0.07 |
| RSFR-M-2X-25- | 26.7±0.45 | 42.5±0.7 | 0.55±0.12 | ≦12.7 | 0.63±0.07 |
| RSFR-M-2X-38- | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≦19.1 | 0.64±0.07 |
| RSFR-M-2X-51- | 53.0±0.56 | 83.9±0.9 | 0.58±0.13 | ≦25.4 | 0.64±0.08 |
| RSFR-M-2X-76- | 79.4±0.56 | 125.3±1.0 | 0.59±0.13 | ≦38.1 | 0.64±0.09 |
| Shrink ratio-3X | |||||
| Part Number | As Supplied (mm) | After Recovery(mm) | |||
| ID(D) | Flatten Width(W) | Double Wall Thickness | ID(d) | Single Wall Thickness | |
| RSFR-M-3X-1.6- | 2.00±0.20 | 3.7±0.3 | 0.47±0.10 | ≦0.53 | 0.52±0.06 |
| RSFR-M-3X-2.4- | 2.79±0.20 | 5.0±0.3 | 0.47±0.10 | ≦0.79 | 0.57±0.06 |
| RSFR-M-3X-3.2- | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≦1.06 | 0.61±0.06 |
| RSFR-M-3X-4.8- | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≦1.59 | 0.67±0.06 |
| RSFR-M-3X-6.4- | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≦2.13 | 0.71±0.06 |
| RSFR-M-3X-9.5- | 10.2±0.32 | 16.7±0.5 | 0.52±0.11 | ≦3.18 | 0.77±0.06 |
| RSFR-M-3X-12.7- | 13.5±0.36 | 21.8±0.6 | 0.53±0.11 | ≦4.23 | 0.80±0.07 |
| RSFR-M-3X-19- | 20.1±0.40 | 32.2±0.6 | 0.55±0.11 | ≦6.35 | 0.84±0.07 |
| RSFR-M-3X-25- | 26.7±0.45 | 42.5±0.7 | 0.565±0.12 | ≦8.47 | 0.86±0.07 |
| RSFR-M-3X-38- | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≦12.9 | 0.89±0.07 |
| RSFR-M-3X-51- | 53.0±0.56 | 83.9±0.9 | 0.57±0.12 | ≦17.2 | 0.90±0.08 |
| RSFR-M-3X-76- | 79.4±0.56 | 125.3±1.0 | 0.57±0.13 | ≦25.8 | 0.92±0.09 |
