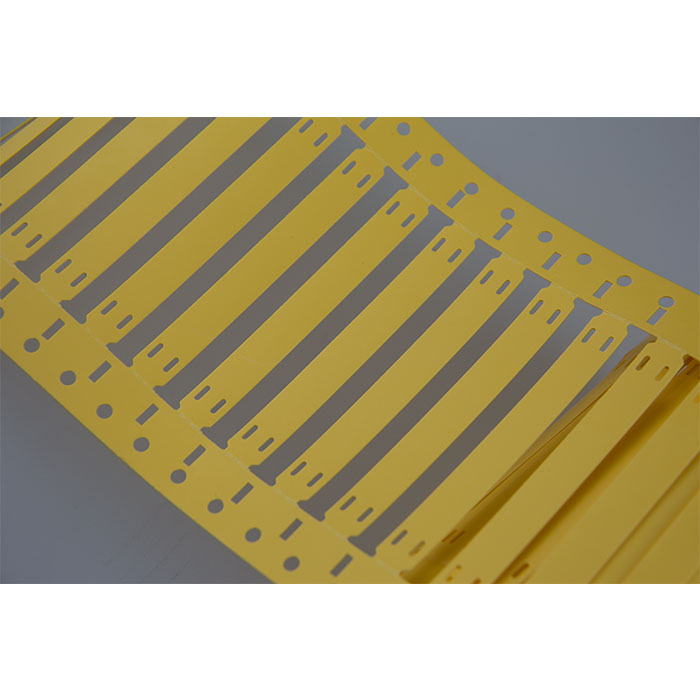

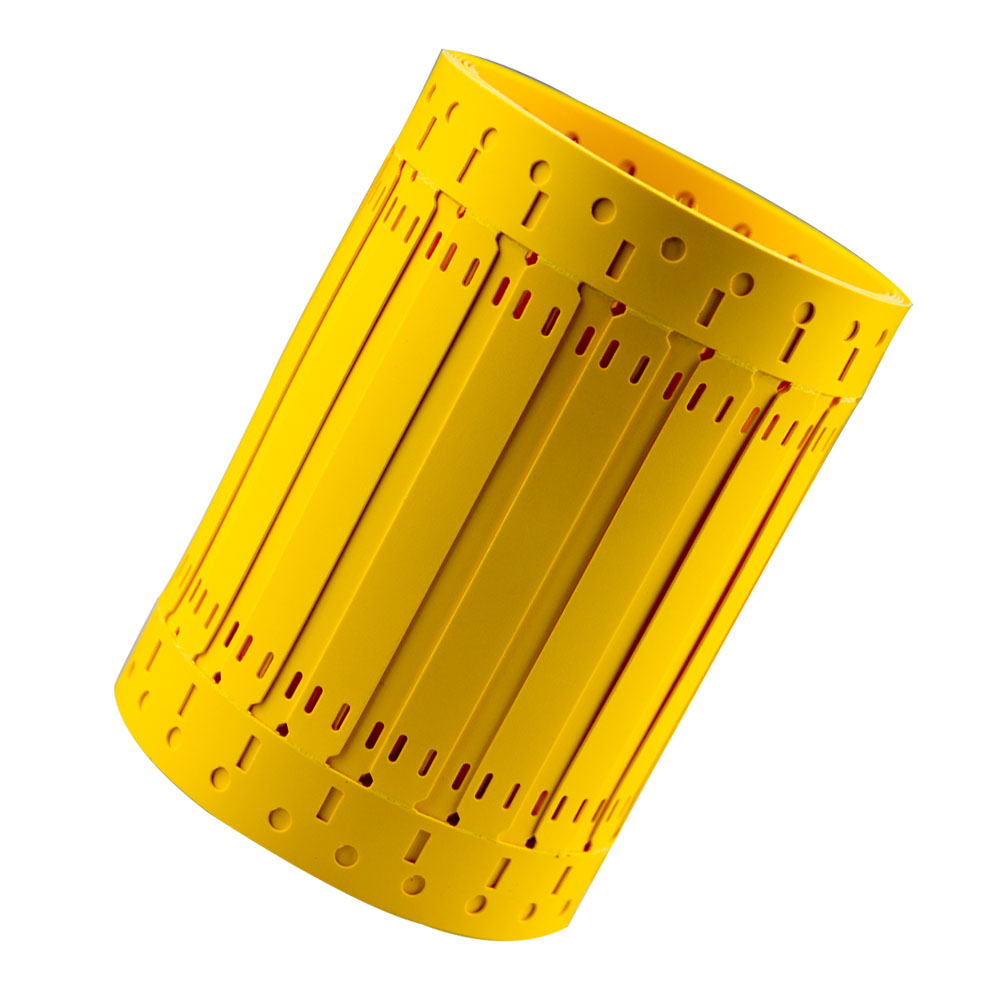

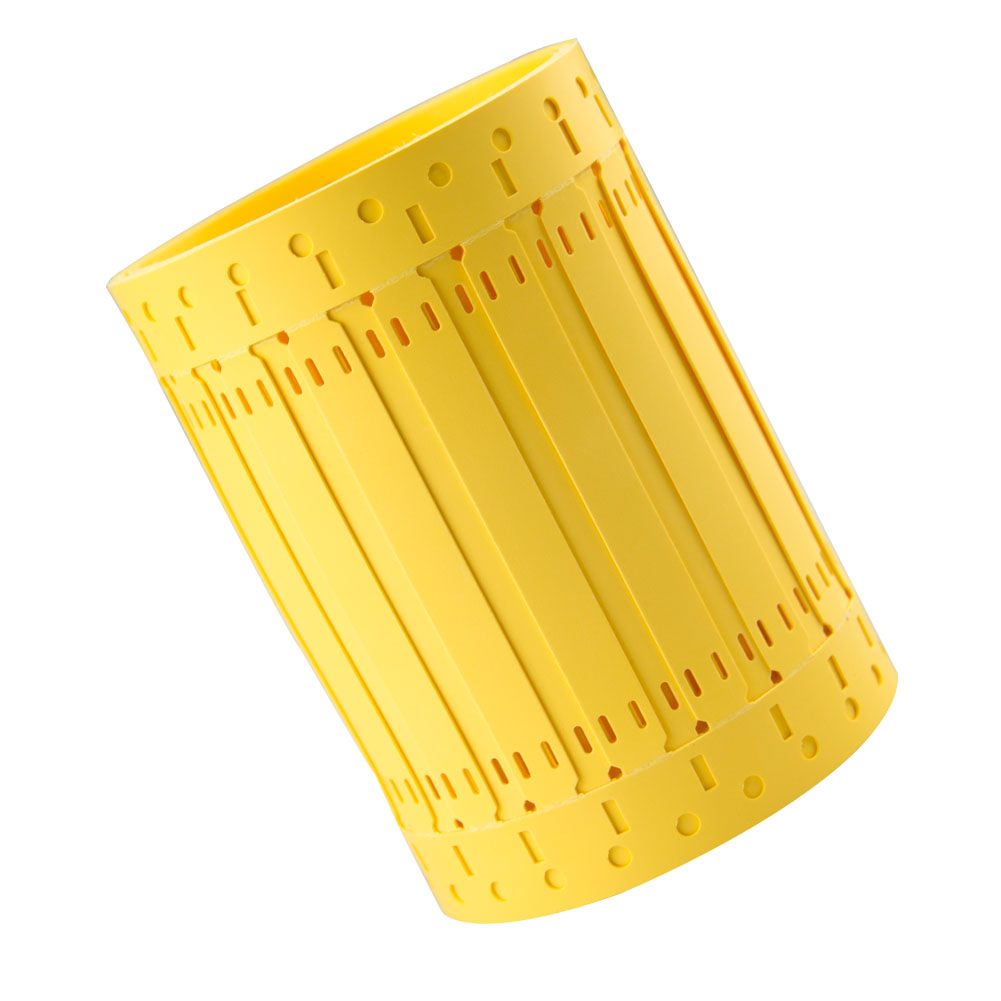

Cable marker tags

Special designed to meet the requirements of high performance identification of wire and cable and also meet the requirement to use in environment for the high temperature and high temperature organic solvent. It is made of superior flame r

Read More
Features

1. Material :RSFR/AMS/HNF
2. Color code robustness standard :SAE AS 81531、MIL-STD-202F
3. Anti-UV 、 Soft 、 Flame Retardant
4. Operating temperature: -55℃ to 125℃
5. Standard color : Yellow or Customized

Application

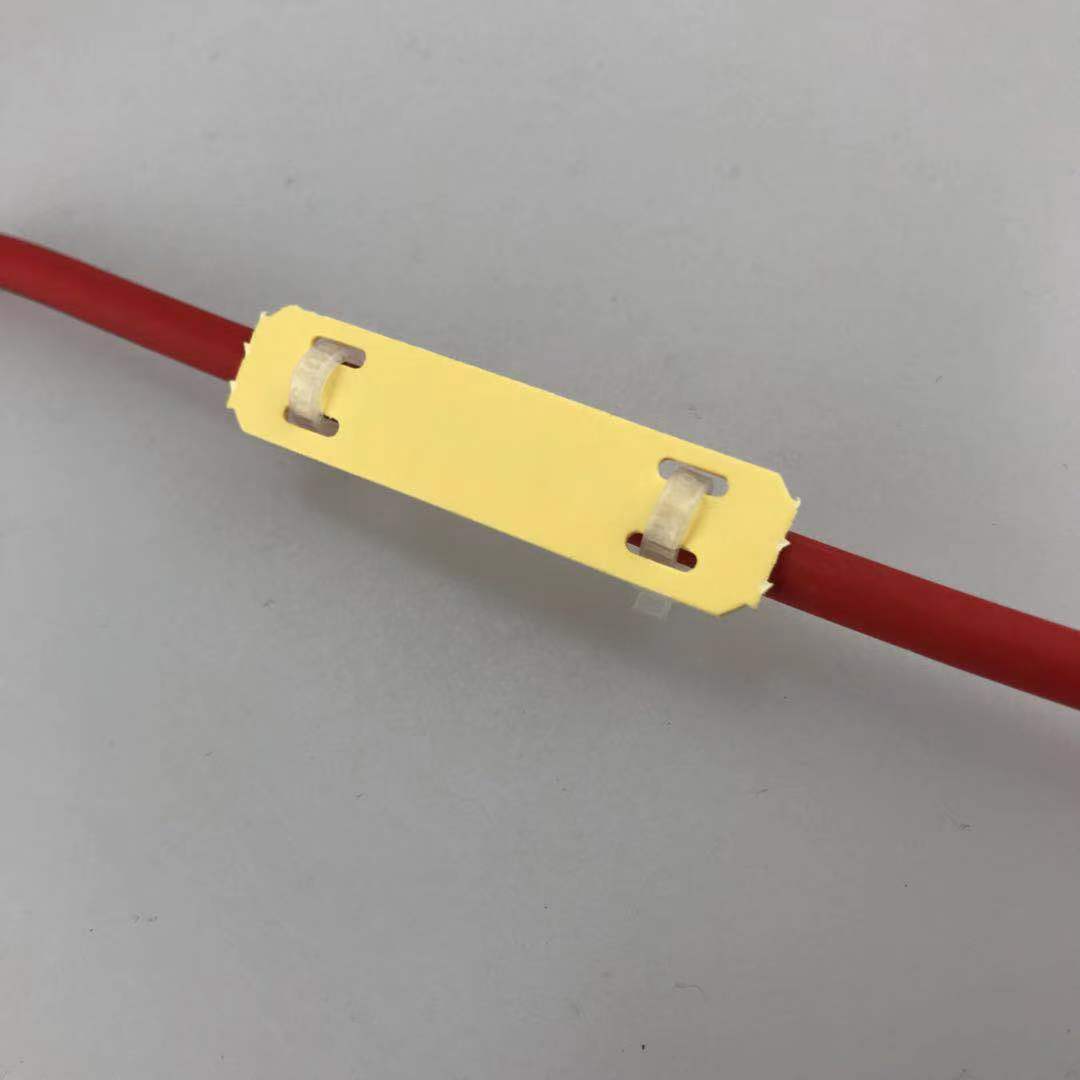

It is made of superior flame retardant polyolefin with excellent electrical, physical, chemical and printing properties. Permanent printing property can be widely used for high-performance identification of wire and cables in industrial, military, aerospace, etc.

Specification

Model No.  Marker width (MM) Marker length (MM) Suit for cable size (MM)
RSFR-M-4H-10.438-2K-*-AP* 10.4 38.1 5.08~12.7
RSFR-M-4H-20.051-1K-*-AP* 20 50.8 12.7~25.4
RSFR-M-4H-41.076-0.5K-*-AP* 41 76.2 25.4 above
RSFR-M-4H-10.445-2K-*-BP* 10.4 45 5.08~12.7
RSFR-M-4H-10.453-2K-*-BP* 10.4 53 5.08~12.7
RSFR-M-4H-10.476-2K-*-BP* 10.4 76 5.08~12.7
RSFR-M-4H-10.490-2K-*-BP* 10.4 90 5.08~12.7
RSFR-M-4H-15.045-1.5K-*-BP* 15 45 12.7~19.1
RSFR-M-4H-15.053-1.5K-*-BP* 15 53 12.7~19.1
RSFR-M-4H-15.064-1.5K-*-BP* 15 64 12.7~19.1
RSFR-M-4H-15.076-1.5K-*-BP* 15 76 12.7~19.1
RSFR-M-4H-15.090-1.5K-*-BP* 15 90 12.7~19.1
RSFR-M-4H-20.345-1K-*-BP* 20.3 45 19.1~25.4
RSFR-M-4H-20.353-1K-*-BP* 20.3 53 19.1~25.4
RSFR-M-4H-20.364-1K-*-BP* 20.3 64 19.1~25.4
RSFR-M-4H-20.376-1K-*-BP* 20.3 76 19.1~25.4
RSFR-M-4H-20.390-1K-*-BP* 20.3 90 19.1~25.4
RSFR-M-4H-25.445-1K-*-BP* 25.4 45 25.4 above
RSFR-M-4H-25.453-1K-*-BP* 25.4 53 25.4 above
RSFR-M-4H-25.464-1K-*-BP* 25.4 64 25.4 above
RSFR-M-4H-25.476-1K-*-BP* 25.4 76 25.4 above
RSFR-M-6H-25.490-1K-*-BP* 25.4 90 25.4 above
