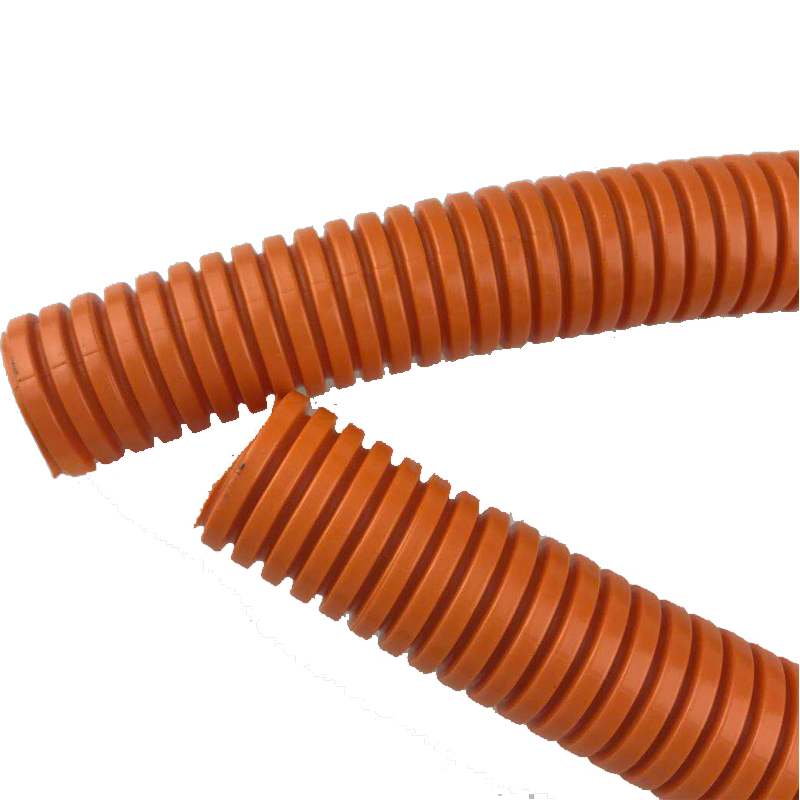

PA Corrugated Flexible Underground Cable Protection Pipe

fixing of the line in the electronic toy and other products the fixingof the mechanical equipment oil pipeline and the tying of the agricultural equipment and the handicrafts.



Feature

Working Temperature : -30℃ ~ 110℃
Product material: PA polyethylene;
Structure: the inner wall and the outer surface are wave-shaped;
Features: good flexibility, surface gloss, polyethylene is a hydrocarbon polymer, the molecule is non-polar, resistant to acid and alkali corrosion;


Application

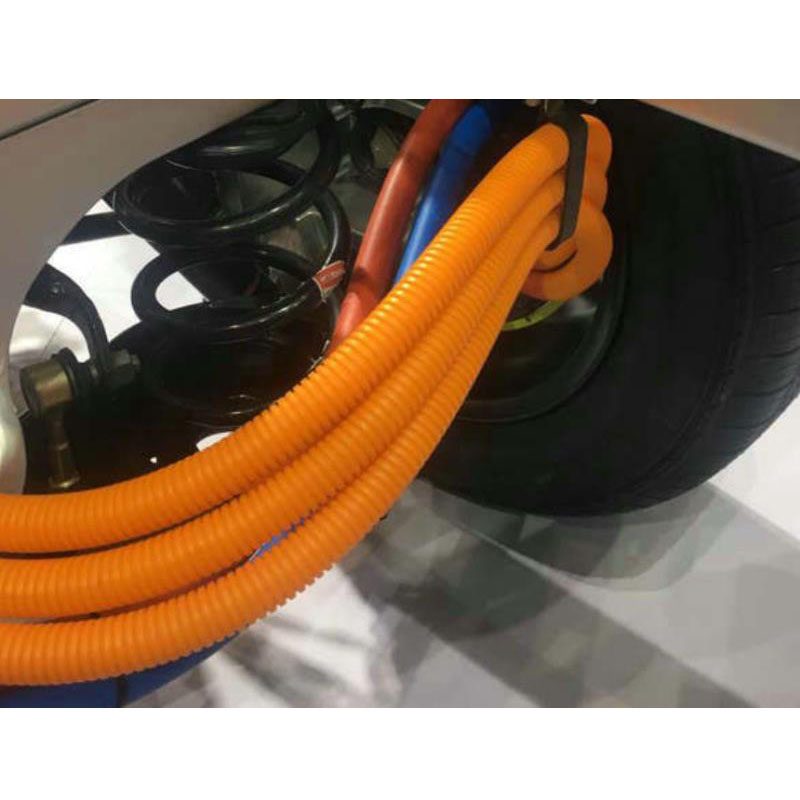

Mainly used for automobile wiring, also for machine tool machinery, automatic instrumentation, motor motor, protection cable and wire from external abrasion and insulation; the site has more than 50 years of service life;

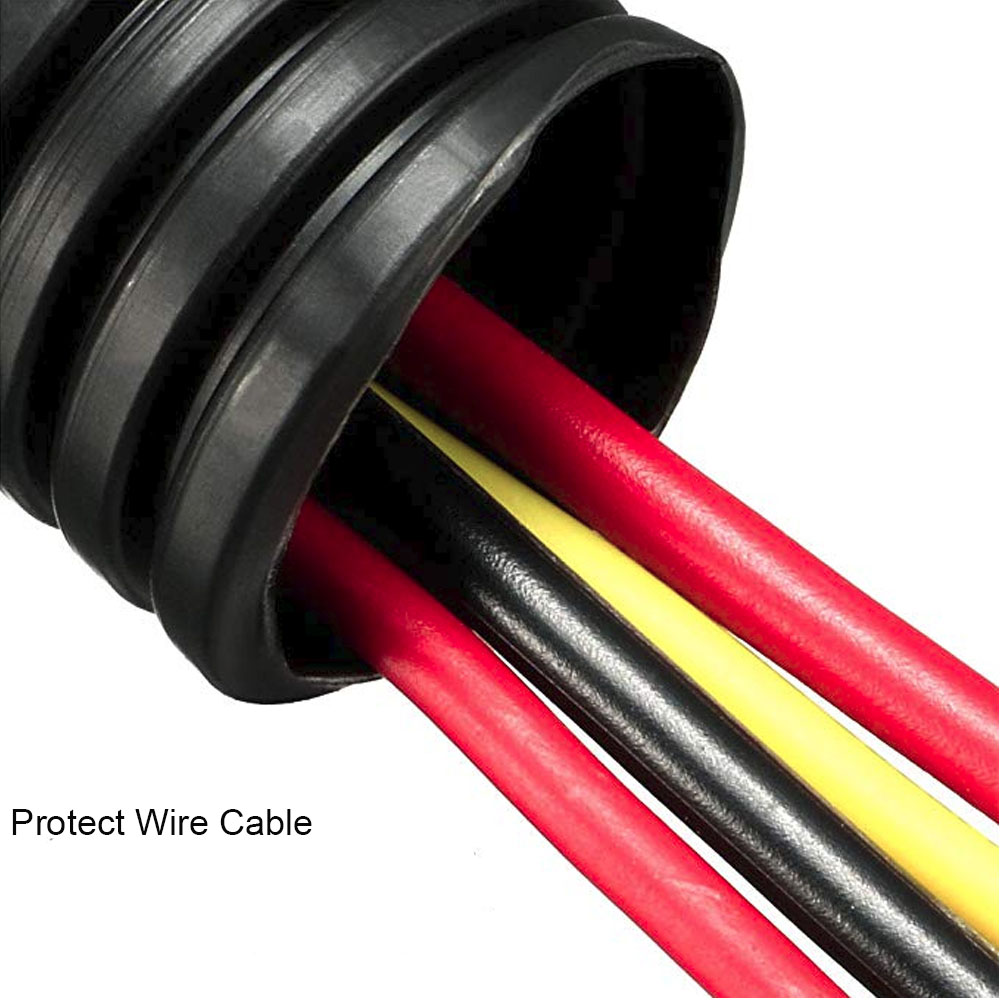

Way to use: Insert the wire and cable into the tube, with SM-G, SM series hose connector


Specification


Specifaiction ID X OD (mm) Package
AD7.0 4.5*7.0 200m/roll
AD10.0 6.5*10.0 100m/roll
AD11.6 8.6*11.6 100m/roll
AD13.0 10.0*13.0 100m/roll
AD14.0 11.0*14.0 100m/roll
AD15.8 12.0*15.8 100m/roll
AD18.5 143.*18.5 100m/roll
AD20.0 16.0*20.0 100m/roll
AD21.2 17.0*21.2 100m/roll
AD25.0 20.0*25.0 100m/roll
AD28.5 23.0*28.5 100m/roll
AD30.0 24.0*30.0 100m/roll
AD32.0 25.0*32.0 50m/roll
AD34.5 29.0*34.5 50m/roll
AD42.5 36.0*42.5 25m/roll
AD54.5 48.0*54.5 25m/roll
