Feature
Material : Nylon
Fire-proof level : 94v-2
Standard : Metric GB national standard
Working temperature : -20°C~-120°C
Feature : High toughness, anti-aging
Applications

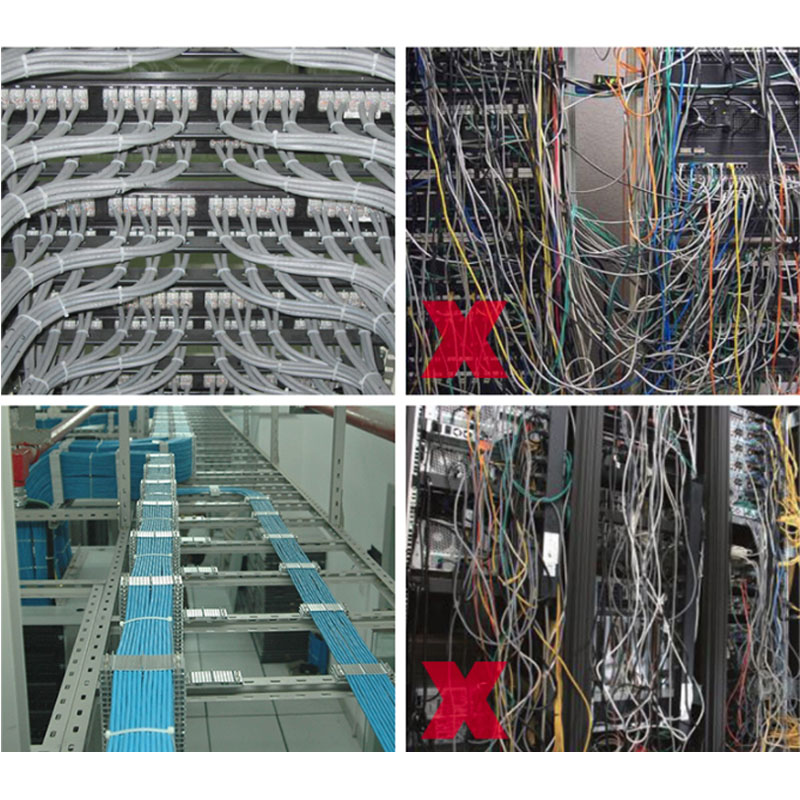

It is applied to the tying cable lighting motor, the fixing of the line in the electronic toy and other products, the fixing of the mechanical equipment oil pipeline, and the tying of the agricultural equipment and the handicrafts.
Specification
 |
||||||

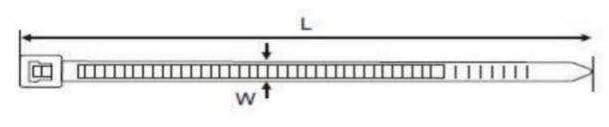

| Item No. | Length | Width(W) | Max Bundle Dia(mm) | Tensile Strength | ||
| inch | mm | mm | mm | LBS | KGS | |
| BL-2.5*60 | 2.4'' | 60 | 2.5 | 11 | 18 | 8 |
| BL-2.5*80 | 3.2'' | 80 | 16 | |||
| BL-2.5*100 | 4.0'' | 100 | 22 | |||
| BL-2.5*120 | 4.7'' | 120 | 30 | |||
| BL-2.5*140 | 5.5'' | 140 | 35 | |||
| BL-2.5*160 | 6.3'' | 160 | 40 | |||
| BL-2.5*200 | 8.0'' | 200 | 50 | |||
| BL-3.6*100 | 4.0'' | 100 | 3.6 | 30 | 40 | 18 |
| BL-3.6*150 | 6.0'' | 150 | 35 | |||
| BL-3.6*250 | 10.0'' | 250 | 65 | |||
| BL-3.6*280 | 11.0'' | 280 | 70 | |||
| BL-3.6*300 | 12.0'' | 300 | 80 | |||
| BL-3.6*370 | 14.6'' | 370 | 105 | |||
| Remark : The width in 4.8、 5.5 、6.0 、6.5 、7.6 、8.8、 9.0mm are available | ||||||
